Compact Design Villa Residences Silent Home Elevator

Brief Introduction

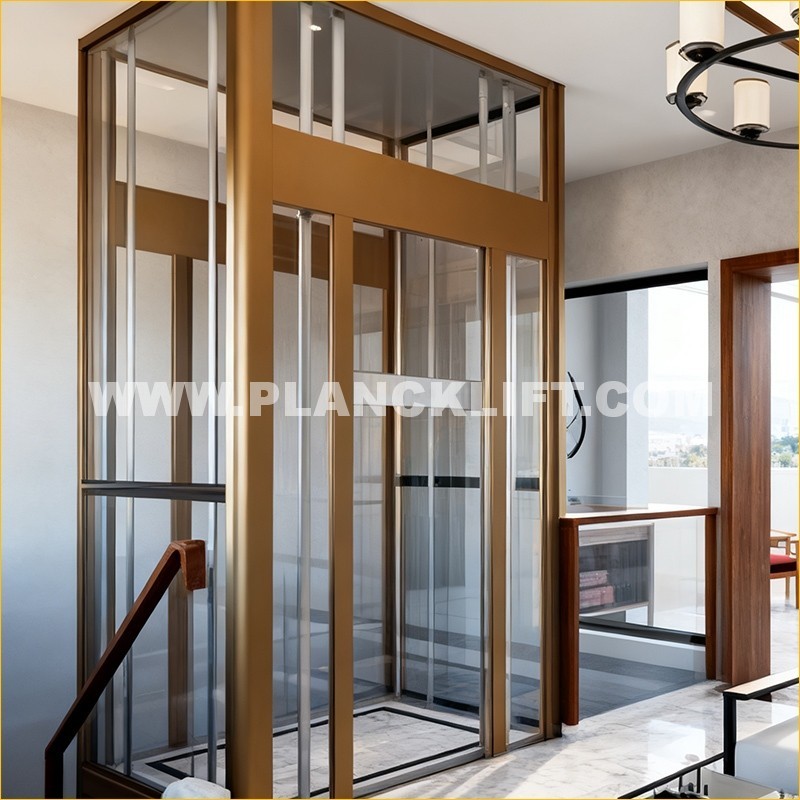

PLANCK’s frameless glass home elevator redefines vertical mobility for modern villas and self-built residences, merging space-saving engineering with high-end aesthetic design. As a top 10 Chinese elevator brand, we craft this silent glass home elevator with machine-room-less (MRL) traction drive, boasting a minimal footprint of 1300×1400 mm and near-silent operation (<45 dB).

Its frameless tempered glass panels maximize natural daylight, eliminate visual clutter, and create a floating design effect that integrates seamlessly with contemporary architectural styles. This compact villa elevator is not just a mobility solution but a high-value design investment—studies confirm homes with premium glass elevators achieve up to 8% higher resale value, making it a strategic choice for B2B developers and construction partners.

※ Elegant Apperance        ※ Traction-type          ※ Customizable

• Type: Low Speed, Glass-type

• Work Principle: Traction

• Feature: MRL / MR

• Application: Commercial Buildings, Self-build Houses, Residential Area

Why Choose PLANCK Frameless Glass Home Elevator

High Space Efficiency

Designed for tight shafts where traditional lifts fail to install, our glass home elevator for villas features MRL traction technology that eliminates the need for a dedicated machine room, cutting construction space and costs significantly. With installation completed in under 7 days, it accelerates project timelines for residential developers.

Whisper-Quiet & Safe Operation

Equipped with a professional elevator governor and overspeed safety gear, this elevator ensures instant emergency stops for maximum passenger protection. Its <45 dB operation guarantees peace in residential spaces, even for night-time use—an essential feature for high-end villa communities.

Light-Filled Aesthetic Design

Frameless tempered glass and safety laminated glass panels enhance sightlines and natural light, turning the elevator into a focal point of home design rather than a hidden utility. Customizable finishes further align with diverse architectural visions of B2B clients.

Cabin Design Selections

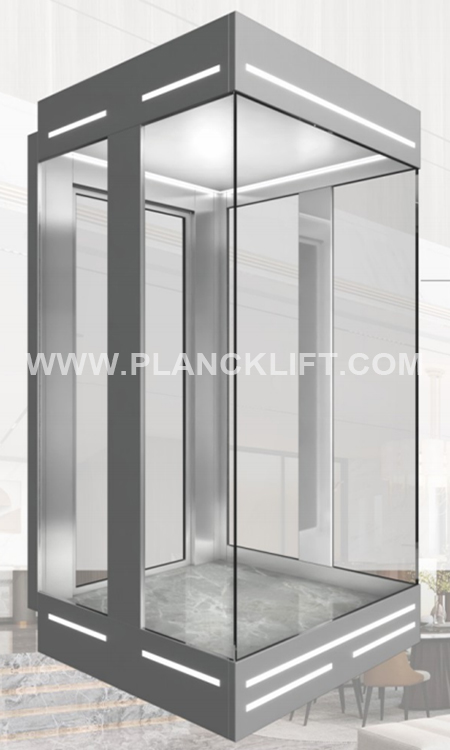

PLK-B021

• Ceiling: Brushed stainless steel frame with integrated LED lighting
• Car Walls: Brushed stainless steel frame with safety laminated glass panels
• Flooring: PVC (marble finish available as an option)

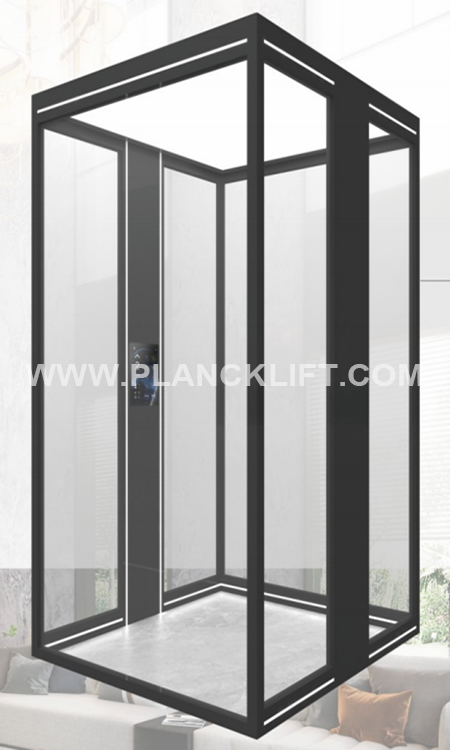

PLK-B022

• Ceiling: Aluminum frame with acrylic translucent panel

• Front Wall: Aluminum frame with safety laminated glass
• Flooring: PVC (marble finish available as an option)




Other Key Accessories

---

Operating Panel

Intuitive, Seamless, Convenient

Ceiling Style

Crisp, Modern, Striking

Elevator Governor

Residential elevator overspeed safety stop

Elevator Cabin Safety Gear

Home elevator overspeed emergency stop

Key Specifications & Custom Models

Core Technical Specifications

This low-speed glass home elevator is engineered for 2-5 story buildings, with a load capacity of 450 kg (6 persons) and a maximum speed of ≤0.63 m/s. It adopts a gearless traction motor, integrated controller, and VVVF door control for smooth, energy-efficient performance. Power compatibility (380V/220V, 50HZ/60HZ) suits global construction projects, with a pit depth of 1.5m and headroom of 4.0-4.5m for flexible installation.

Custom Glass Cabin Models

PLK-B021: Brushed stainless steel frame with integrated LED ceiling lighting, safety laminated glass car walls, and PVC flooring (marble finish optional) – ideal for modern minimalist villas.

PLK-B022: Aluminum frame with acrylic translucent ceiling panel, laminated glass front wall, and customizable flooring – a lightweight option for self-built houses with unique design requirements.

All models support personalized operating panels (PLB-D01 to PLB-D06) for intuitive, seamless user experience.

Model	Home Elevator
Application	Residential, Hotel, Office
Loading (Kg)	630	800	1000	1350	1600
Speed (m/s)	1.0/1.75	1.0/1.75/2.0	1.0/1.75/2.0	1.0/1.75/2.0/2.5	1.0/1.75/2.0/2.5
Motor	Gearless Motor
Control System	Integrated Controller
Door Control	VVVF
Opening Width (mm)	800*2100	800*2100	900*2100	1100*2100	1100*2100
Headroom (m)	4.0-4.5
Pit Depth (m)	1.5	1.5-1.7	1.5-1.8	1.8-2.0	1.8-2.0
Total Height (m)	<150m
Stop	<56
Brake voltage	DC110V
Power	380V,220V,50HZ/60HZ

Nationwide Service & Factory-Direct Support for B2B Partners

Headquartered in Huzhou with a 20,000 ㎡ smart factory and $28M+ investment, PLANCK offers factory-direct pricing for our glass home elevators, cutting out middlemen and reducing costs for developers, construction companies, and villa project contractors. Our 18 in-house R&D engineers provide tailored technical solutions, from pre-installation shaft design to post-sales maintenance. We offer nationwide on-site installation and 24/7 technical support, ensuring project efficiency and long-term equipment reliability for B2B clients across residential development sectors.

Wide Applications of Frameless Glass Home Elevator

This versatile elevator is engineered for high-end villa communities, custom self-built houses, and small-scale residential commercial buildings. Its compact design suits urban luxury villas with limited space and countryside self-built residences with unique architectural layouts. It also applies to boutique residential hotels and small office buildings, where aesthetic design and space efficiency are prioritized—making it a one-stop vertical mobility solution for diverse B2B residential and light commercial projects.

Company Hall

Dispaly Hall

Production Workshop

Delivery Area

FAQ About PLANCK Frameless Glass Home Elevator

Q1: What is the installation timeline for this glass elevator?

Our MRL traction design enables fast installation, typically completed in 7 days or less for standard 2-5 story projects, with on-site support from our professional team.

Q2: Can the glass panels be customized for different architectural styles?

Yes, we offer tempered glass, safety laminated glass, and frosted glass options, with customizable frame materials (stainless steel/aluminum) to match any villa or self-built house design.

Q3: Does the elevator meet international safety standards?

Absolutely. It is equipped with overspeed safety gear, elevator governor, and emergency stop systems, complying with global residential elevator safety regulations, and all glass panels pass tempered and impact resistance tests.

Q4: What maintenance support is provided for B2B clients?

We offer annual professional maintenance, 24/7 emergency repair, and remote fault diagnosis, with a nationwide network of service centers to ensure minimal downtime for your projects.
