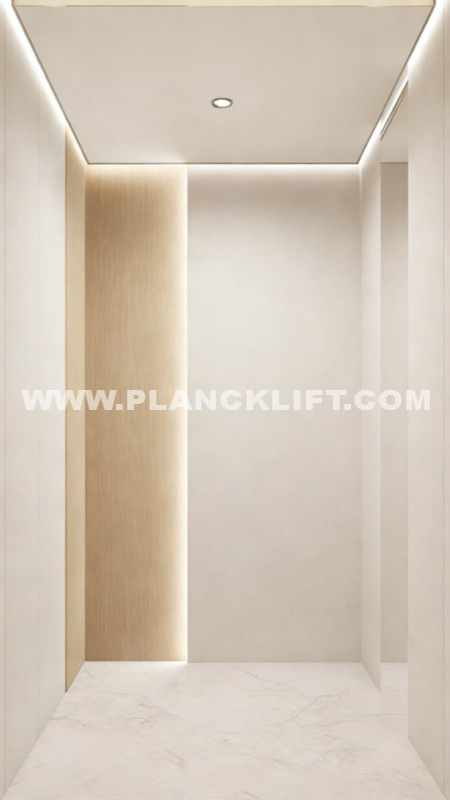

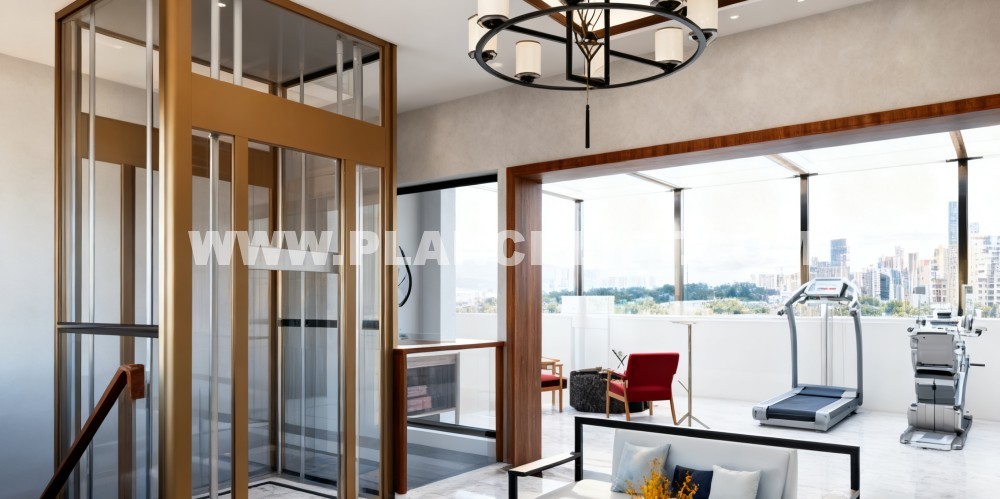

Family-Use Compact Self-Built Houses Small Residential Elevator

Brief Introduction of Compact Residential Traction Elevator

PLANCK’s family-use compact self-built houses small residential elevator is a low-speed traction elevator designed for 2-4 story private residences, villas, and small self-built buildings. Rooted in rigorous Chinese manufacturing standards and factory-direct supply chains, this MRL/MR type elevator abandons the stereotype of "Made in China = low cost", integrating high-quality craftsmanship, durable components, and affordable pricing for B-end clients such as property developers, villa construction contractors, and home renovation companies.

With a maximum load of 450 kg (6 persons) and a speed of ≤0.63 m/s, it features a gearless motor and integrated controller for stable and energy-efficient operation, and its fully customizable cabin design—including finishes, lighting, and layout—turns vertical transportation into a stylish extension of home aesthetics. As a mature residential elevator solution, it has been widely applied in modern home construction, adapting to diverse interior styles from minimalist to classic.

※ Customizable       ※ Factory-Direct          ※ Mature Solution

• Type: Low Speed

• Work Principle: Traction

• Feature: MRL / MR

• Application: Commercial Buildings, Self-build Houses, Residential Area

Why Choose PLANCK Compact Residential Traction Elevator

Ultra-Compact Design for Small Spaces

Tailored for 2-4 story low-rise buildings, the elevator features a space-saving structure that fits small hoistways in self-built houses and villas, without requiring large-scale structural modification of the building. Its compact traction system eliminates the need for a bulky machine room, maximizing the use of limited residential space.

Factory-Direct Pricing & High Cost Performance

With efficient local supply chains and factory-direct sales, PLANCK cuts out middlemen and offers competitive pricing for B-end bulk orders. Premium materials and rigorous quality control ensure durability, reducing long-term repair and replacement costs for clients.

Fully Customizable Aesthetic & Functional Design

Unlike standardized residential elevators, it provides two exclusive cabin design schemes (PLK-V2502/PLK-V2503) and diverse customization options for finishes, lighting, and flooring. Clients can choose from PVC, porcelain slab, or sintered stone flooring, and match mirror stainless steel, oak textured steel panels, or marble-vein panels to align with home design themes.

Reliable Safety System for Residential Use

Equipped with elevator governor interlocked with safety gear and instant stop safety gear, it forms a comprehensive safety protection system for family use—especially suitable for households with the elderly and children. The intuitive and seamless operational panel (PLB-D01 to PLB-D06) offers simple operation, reducing misoperation risks.

PLK-V2502

• Ceiling: Pure white textured steel panel with champagne gold trim, featuring concealed LED strip lighting and recessed downlights.

• Front Wall: Platinum sand textured steel panel.

• Side Walls: Yellow-white oak textured steel panels combined with natural-finish mirror stainless steel and platinum sand textured steel panels.

• Rear Wall: Yellow-white oak textured steel panels paired with platinum sand textured steel panels, integrated with concealed LED strip lighting.

• Flooring: PVC or porcelain slab

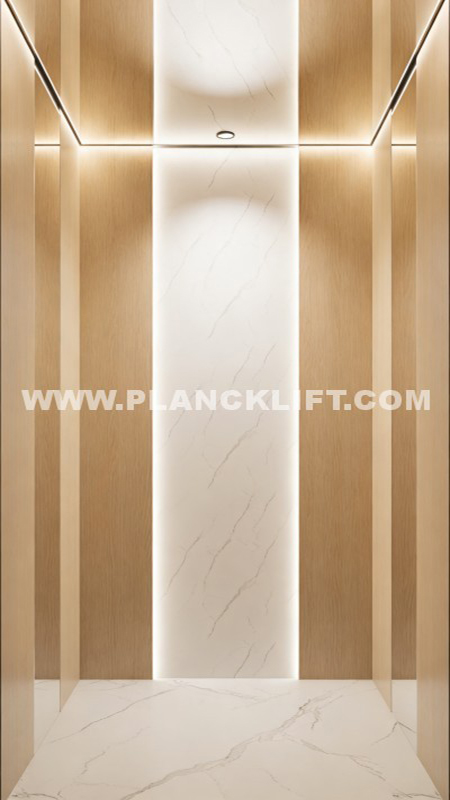

PLK-V2503

• Ceiling: Natural-finish mirror stainless steel with recessed downlights and integrated LED strip lighting
• Front Wall: Yellow-white oak textured steel panel.
• Side Walls: Yellow-white oak textured steel panels on both sides, with natural-finish mirror stainless steel in the center.
• Rear Wall: Yellow-white oak textured steel panels on both sides, with a central panel in white marble-vein textured steel, complemented by concealed LED strip lighting.
• Flooring: PVC or sintered stone.

Other Key Accessories

---

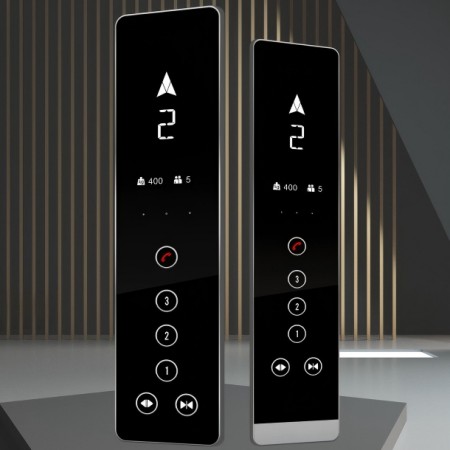

Operating Panel

Intuitive, seamless, and convenient operation

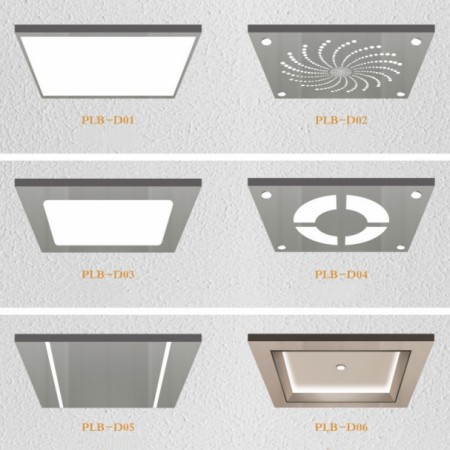

Ceiling Style

A simple modern aesthetic ceiling deisgn

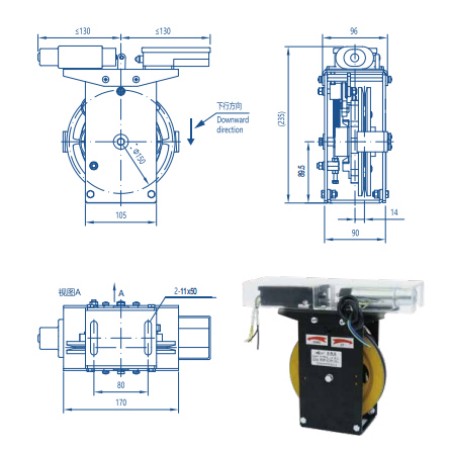

Elevator Governor

The governor is interlocked with the safety gear.

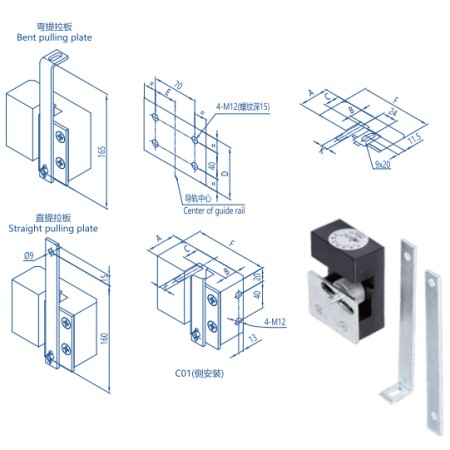

Elevator Cabin Safety Gear

The safety gear gives an instant complete stop.

Key Specifications & Custom Models of Residential Traction Elevator

This home traction elevator is a low-speed MRL type with a core load of 450 kg and speed ≤0.63 m/s, and PLANCK also provides extended custom specifications for B-end large projects, covering 630 kg to 1600 kg load range with speed up to 2.5 m/s. Core parameters:

Basic Model: 450 kg load, 2-4 stories travel height, ≤0.63 m/s speed, DC110V brake voltage, 380V/220V 50HZ/60HZ power supply

Extended Custom Models: 630-1600 kg load, 1.0-2.5 m/s speed, 800-1100 mm door opening width, 4.0-4.5 m headroom, 1.5-2.0 m pit depth

Cabin Custom Schemes: PLK-V2502 (champagne gold trim + yellow-white oak panels) and PLK-V2503 (mirror stainless steel ceiling + marble-vein panels), both with concealed LED strip lighting and recessed downlights for diverse aesthetic needs.

All models adopt VVVF door control and gearless motor, with a total applicable building height of <150m and maximum stops of <56, suitable for large villa communities and multi-story self-built house projects.

Model	Home Elevator
Application	Residential, Hotel, Office
Loading (Kg)	630	800	1000	1350	1600
Speed (m/s)	1.0/1.75	1.0/1.75/2.0	1.0/1.75/2.0	1.0/1.75/2.0/2.5	1.0/1.75/2.0/2.5
Motor	Gearless Motor
Control System	Integrated Controller
Door Control	VVVF
Opening Width (mm)	800*2100	800*2100	900*2100	1100*2100	1100*2100
Headroom (m)	4.0-4.5
Pit Depth (m)	1.5	1.5-1.7	1.5-1.8	1.8-2.0	1.8-2.0
Total Height (m)	<150m
Stop	<56
Brake voltage	DC110V
Power	380V,220V,50HZ/60HZ

Nationwide Service & Factory-Direct Support for Residential Elevator Projects

PLANCK offers professional factory-direct support for all compact residential elevator B-end projects, covering the entire project lifecycle from pre-sales to after-sales. The pre-sales team provides free on-site hoistway survey and customized design according to the building’s structure and client’s aesthetic demands; the production team ensures on-time delivery with mature manufacturing lines, and the professional installation team completes on-site assembly and commissioning with standardized construction processes to avoid damage to the original building structure. The nationwide after-sales network provides 48-hour quick response, regular maintenance, and spare parts supply, and for bulk villa project orders, we assign exclusive project managers for one-to-one follow-up to ensure project progress and quality.

Wide Applications of PLANCK Compact Residential Elevator

This self-built houses small residential elevator is a versatile solution for B-end clients in the residential construction and renovation industry, with core applications:

Self-Built Houses: 2-4 story rural and urban self-built houses requiring personalized and space-saving vertical transportation

Villa Communities: High-end villa projects and gated communities with private residential elevator needs

Small Commercial Residences: Low-rise apartment buildings and serviced apartments with 2-4 floors

Home Renovation Projects: Renovation of old residences to add elevators for the elderly and disabled

It is also applicable for small-scale hospitality facilities such as boutique homestays and bed-and-breakfasts, adapting to both residential and light commercial low-rise building scenarios.

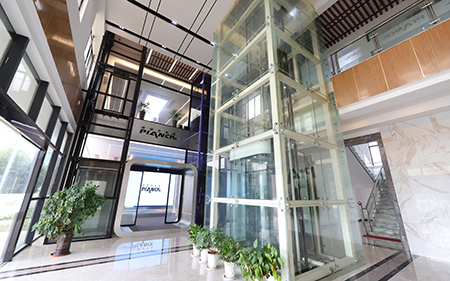

Company Hall

Dispaly Hall

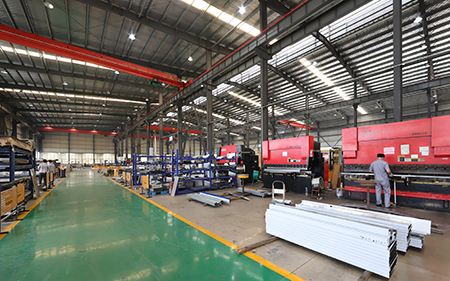

Production Workshop

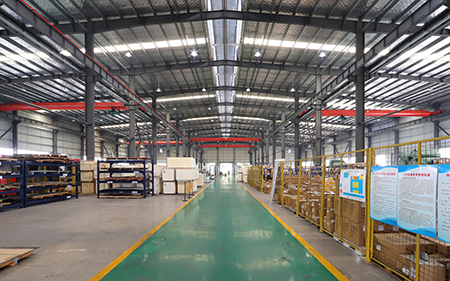

Delivery Area

FAQ About Family-Use Compact Residential Traction Elevator

Q1: What is the minimum hoistway size required for this residential elevator?

The basic 450 kg model is designed for compact hoistways in self-built houses, with a minimum applicable hoistway size matching the standard cabin, and our pre-sales team can provide customized hoistway adjustment plans for irregular building spaces.

Q2: Can the elevator be customized to match the existing home interior style?

Yes. We offer two standard cabin design schemes and fully customizable finishes, lighting, and flooring materials—including oak, marble-vein, and mirror stainless steel panels—to seamlessly integrate with any home aesthetic.

Q3: Is professional installation required, and how long does the installation take?

Yes, all installations are completed by PLANCK’s professional certified team to ensure safety and performance. The installation cycle for a single residential unit is 3-5 working days, with no impact on normal home living during construction.

Q4: What maintenance is required for the residential elevator after installation?

For residential use, we recommend a regular maintenance check every 6 months, including traction system inspection, safety gear testing, and cleaning. The after-sales team provides on-site maintenance, and minor issues can be resolved via remote technical support for quick troubleshooting.
