Quiet-Ride Urban Homes Friendly Machine-Roomless Residential Elevator

Brief Introduction

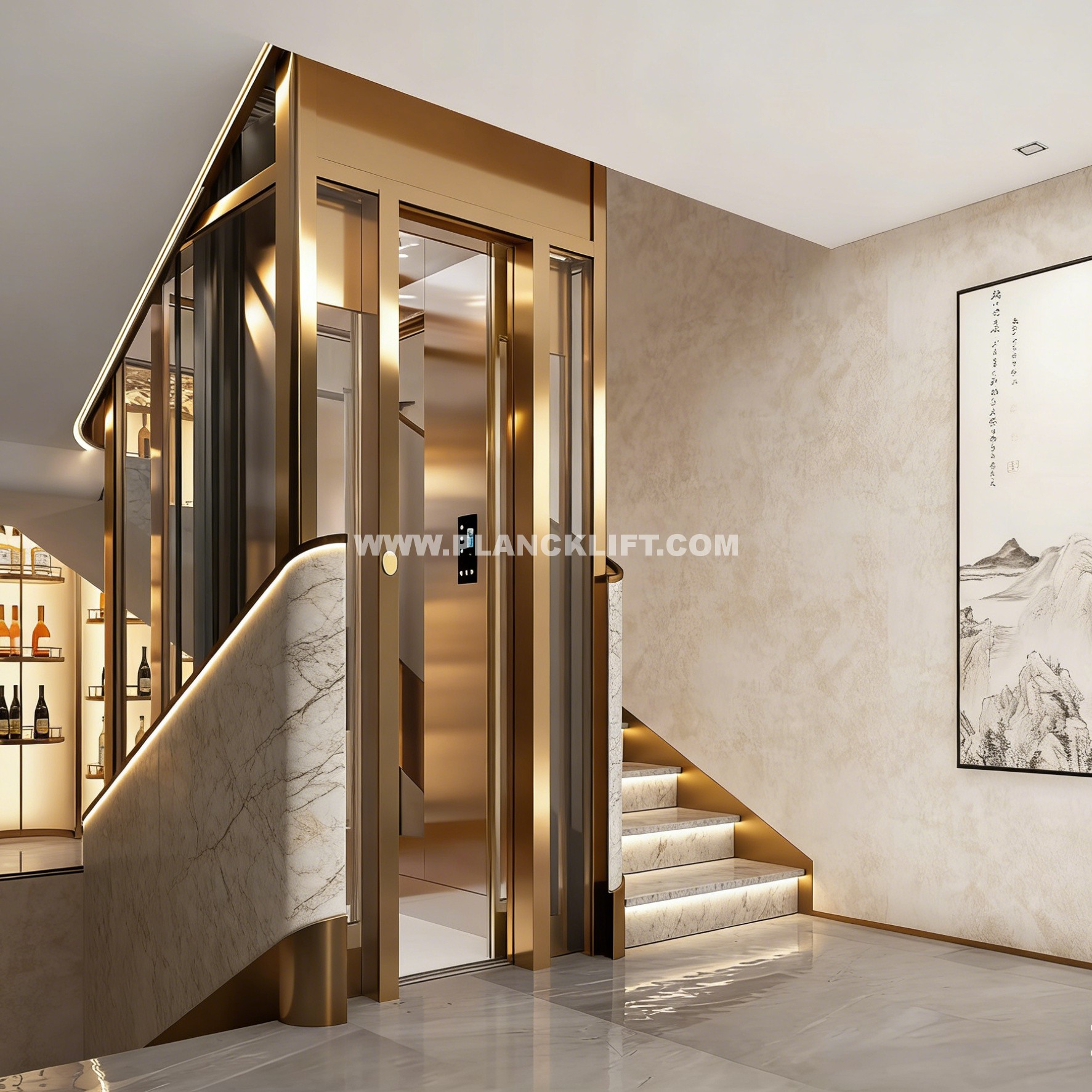

PLANCK Symmetry Machine Roomless Residential Elevator is a high-end vertical transportation solution engineered for urban homes, villas and self-build houses, blending architectural symmetry, silent traction performance and factory-direct premium quality. As a core product of China’s Top 10 inland elevator brand, this MRL residential elevator is 100% made in China with national standard compliance, featuring a balanced dual-load mechanical structure, centered cabin design and customizable interior finishes.

It delivers a quiet ride with ≤0.63 m/s low speed, 450kg load capacity (6 persons) and 2-4 stories travel range, perfectly balancing aesthetics, durability and ease of use for modern residential scenarios. What makes it stand out is the design-focused symmetry, which is reflected in cabin layout, mechanical structure and interior decoration, creating visual harmony and smooth operation for high-end home renovations.

※ Customzed Style        ※ Factory-Direct          ※ Mature Solutions

• Type: Low Speed

• Work Principle: Traction

• Feature: MRL / MR

• Application: Commercial Buildings, Self-build Houses, Residential Area

Why Choose for Symmetry Machine Roomless Residential Elevator

HighHigh Ride Comfort & Silence

The symmetrical traction drive system with counterweight forms a stable mechanical structure, reducing vibration and noise to the minimum— the hallmark of a premium quiet ride residential elevator. The gearless motor and integrated controller ensure smooth acceleration and deceleration, eliminating the noise of traditional gear meshing.

Space-Saving MRL Design

As a machine roomless home elevator, it cancels the dedicated machine room and installs core components in the hoistway, maximizing the utilization of building space and reducing civil construction costs for residential projects.

Customizable Symmetrical Aesthetics

With three-dimensional symmetry in cabin layout, door design and interior finishes, it offers personalized customization for ceiling, wall panels and flooring, matching modern luxury and minimalist residential decoration styles perfectly.

Rigorous Safety Standards

Equipped with interlocked elevator governor and instant-stop safety gear, this residential traction elevator provides the highest level of safety assurance, with DC110V brake voltage and multiple safety protection protocols to avoid potential risks.

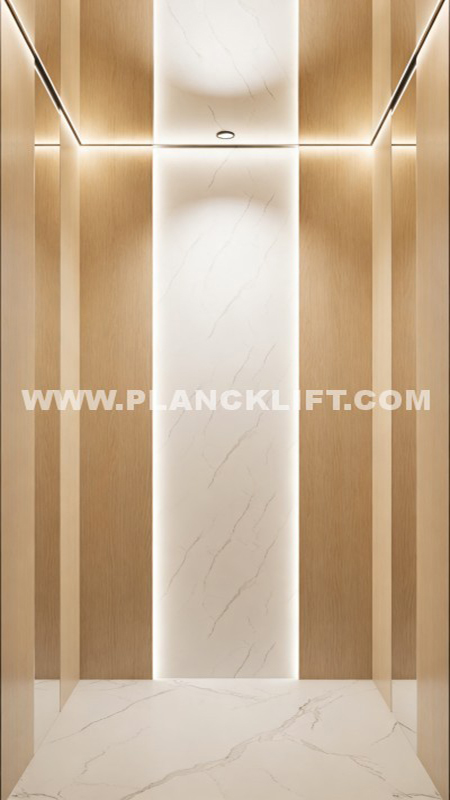

Minimalist Style

# Ceiling: Pure white artistic steel panel + champagne gold trim + recessed LED strip lighting + downlights

# Front Wall: Platinum sand artistic steel panel

Side Walls: Yellow-white oak artistic steel panel + natural-finish mirror stainless steel + platinum sand artistic steel panel

# Rear Wall: Yellow-white oak artistic steel panel + platinum sand artistic steel panel + recessed LED strip lighting

# Flooring: PVC or Sintered Stone

# Cabin Door & Landing Door:Platinum sand artistic steel panel

Other Key Accessories

Operating Panel

A simple intuitive and convenient interface

Ceiling Style

Customizable ceiling design with modern aesthetic sensibilities.

Elevator Governor

 Interlocked with the safety gear bring the elevator to an immediate stop

Elevator Cabin Safety Gear

 Gives an instant complete stop, providing the highest level of safety assurance

Key Specifications & Custom Models

Standard Core Specifications

Traction work principle, MRL/MR optional feature

Speed: ≤0.63 m/s; Load: 450kg (6 persons); Travel: 2-4 stories

Power supply: 380V/220V, 50HZ/60HZ; Brake voltage: DC110V

Cabin door: Center-opening type with platinum sand artistic steel panel

Flooring: PVC or sintered stone for optional selection

Custom Model Range

PLANCK offers scalable models with loading capacity from 630kg to 1600kg, speed up to 2.5 m/s for high-rise residential needs. Customization covers:

Ceiling style: Pure white artistic steel panel with champagne gold trim, recessed LED strip lighting and downlights

Wall finishes: Yellow-white oak artistic steel panel, natural-finish mirror stainless steel and platinum sand artistic steel panel

Operating panels: PLB-D01 to PLB-D06 series with intuitive and convenient interface

Hoistway adaptation: Pit depth 1.5-2.0m, headroom 4.0-4.5m for different residential building structures

Model	Home Elevator
Application	Residential, Hotel, Office
Loading (Kg)	630	800	1000	1350	1600
Speed (m/s)	1.0/1.75	1.0/1.75/2.0	1.0/1.75/2.0	1.0/1.75/2.0/2.5	1.0/1.75/2.0/2.5
Motor	Gearless Motor
Control System	Integrated Controller
Door Control	VVVF
Opening Width (mm)	800*2100	800*2100	900*2100	1100*2100	1100*2100
Headroom (m)	4.0-4.5
Pit Depth (m)	1.5	1.5-1.7	1.5-1.8	1.8-2.0	1.8-2.0
Total Height (m)	<150m
Stop	<56
Brake voltage	DC110V
Power	380V,220V,50HZ/60HZ

Nationwide Service & Factory-Direct Support for Residential Elevator Projects

PLANCK provides one-stop factory-direct support for all symmetry residential elevator projects, with no middlemen markup to ensure exceptional cost performance. Backed by a 20,000 ㎡ smart manufacturing facility in Huzhou and USD 28M+ registered capital, we offer:

• Professional pre-sales on-site survey and hoistway design optimization

• Efficient factory production and on-time delivery with 18+ years of manufacturing expertise

• On-site installation and commissioning by certified engineers

• Nationwide after-sales maintenance with regular equipment inspection and spare parts supply

• 24/7 emergency rescue service to ensure zero long-term downtime for residential elevators

Wide Applications of Symmetry MRL Residential Elevator

This machine roomless residential elevator is a versatile solution for various residential scenarios, including:

• Urban high-end villas and luxury apartments pursuing architectural symmetry and quiet ride experience

• 2-4 stories self-build houses with personalized decoration needs

• Residential communities requiring space-saving and energy-efficient vertical transportation

• Renovation projects of old residential buildings needing low-cost and easy-installation elevator solutions

It is also applicable for small-scale commercial scenarios such as boutique homestays and community service centers with low traffic volume.

Company Hall

Dispaly Hall

Production Workshop

Delivery Area

FAQ About PLANCK Symmetry Machine Roomless Residential Elevator

Q1: What is the installation cycle of this MRL residential elevator?

For standard models, the factory production cycle is 30-45 days, and on-site installation and commissioning can be completed within 7-10 days for a single hoistway.

Q2: Can it be customized for special-shaped hoistways in residential buildings?

Yes, our engineering team can design personalized cabin and hoistway solutions according to the actual building structure, ensuring the symmetry design and operation safety.

Q3: What maintenance is required for the symmetry traction residential elevator?

Regular maintenance is required every 3 months, including lubrication of guide rails, inspection of safety gear and debugging of control system. We provide a one-year free maintenance service for all new installations.

Q4: Does it comply with international elevator standards for export projects?

All core components are manufactured with national standard compliance, and we can provide customized certification services to meet the import requirements of different countries for residential elevators.
