Brief Introduction of PLANCK Glass Traction Home Elevator

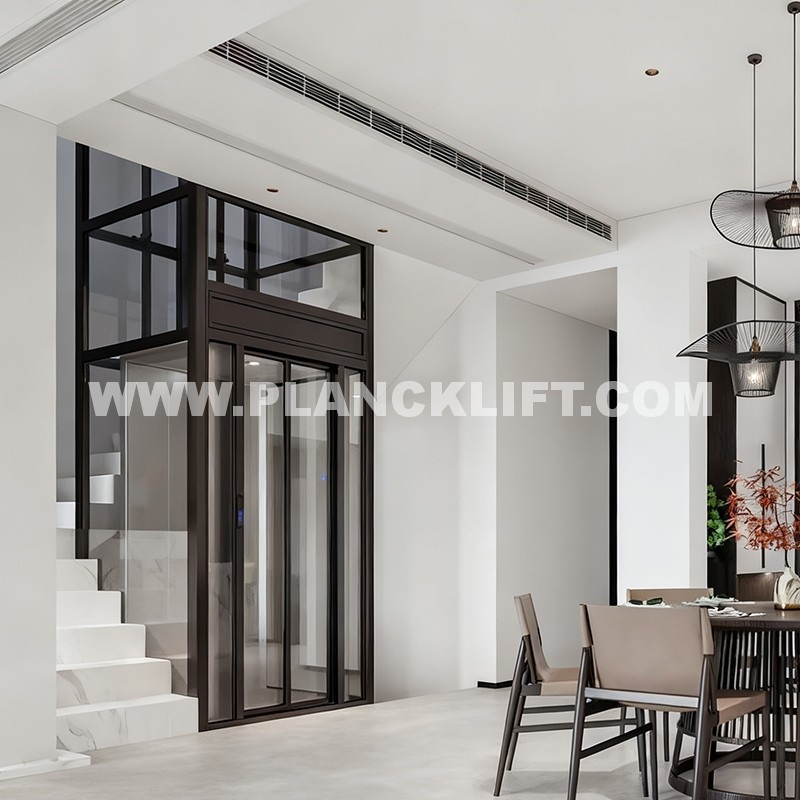

PLANCK’s space-saving glass traction home elevator is a luxury vertical transportation solution crafted for modern residential and light commercial B2B projects (2-5 stories), blending minimalist design with high-performance traction technology. Dubbed the “invisible elevator”, this glass-type MRL traction elevator features a full metal-framed glass shaft and transparent/tinted glass cabin panels, creating a luminous, airy aesthetic that integrates seamlessly into modern interiors—no longer a functional device but a floating glass sculpture for high-end residences and commercial spaces.
As a B2B-focused product, it offers both MRL (machine-roomless) and MR (machine-room) options, low-speed operation (≤0.63 m/s), and a 450kg standard load (6 persons), redefining light luxury and practicality for real estate developers, custom home builders, and property investors.
※Elegant Apperance※Traction-type※Customizable
Type: Low Speed, Glass-type
Work Principle: Traction
Feature: MRL / MR
Application: Commercial Buildings, Self-build Houses, Residential Area
2 - 5 Stories
Travel
≤ 0.63 m/s
Speed
450 kg
Load
6 Persons
Capacity
Cabin Design Selections
PLK-B021
Ceiling: Brushed stainless steel frame with integrated LED lighting
Car Walls: Brushed stainless steel frame with safety laminated glass panels
Flooring: PVC (marble finish available as an option)
PLK-B022
Ceiling: Aluminum frame with acrylic translucent panel
Front Wall: Aluminum frame with safety laminated glass
Flooring: PVC (marble finish available as an option)
Why Choose PLANCK Glass Traction Home Elevator
Elevated Aesthetic & Modern Design
This glass home elevator for modern residences embodies a minimalist light-luxury style—elegant without ostentation—far surpassing traditional enclosed elevators in visual appeal. Its all-glass structure maximizes natural light and space perception, a key selling point for B2B clients developing high-end residential and commercial projects.
Robust Safety & Reliable Traction System
Equipped with a dedicated residential elevator governor and interlocked safety gear, the elevator automatically stops in case of overspeed, providing the highest safety assurance for low-rise buildings (≤6 stories). The gearless traction motor ensures smooth, low-vibration operation, with VVVF door control for seamless, quiet door opening/closing—eliminating safety concerns for B2B project users.
Fully Customizable B2B Solutions
PLANCK offers two exclusive standard cabin designs (PLK-B021/PLK-B022) and fully customizable options for B2B clients, including ceiling materials, glass tints, and flooring finishes (PVC with marble finish optional), tailoring every detail to project design requirements.
Flexible Power & Installation Options
Supporting 380V/220V power (50HZ/60HZ) and both MRL/MR designs, it adapts to diverse building structural conditions—ideal for custom self-build houses, high-end apartments, and small commercial spaces with varying construction constraints.
Other Key Accessories
Operating Panel
A simple and modern user interface thoughtfully designed for intuitive, seamless, and convenient operation.
Ceiling Style
A simple yet striking ceiling design, featuring crisp—rather than soft—lines that align with modern aesthetic sensibilities.
Elevator Governor
Designed for residential elevators, this governor is interlocked with the safety gear—any overspeed condition automatically actuates the system to bring the elevator to an immediate stop.
Elevator Cabin Safety Gear
Houses equipped with home elevators typically do not exceed six stories. If a sudden overspeed, this safety gear gives an instant complete stop, providing the highest level of safety assurance.
Key Specifications & Custom Models of Glass Traction Elevator
As a B2B-focused product, PLANCK provides flexible standard specs and scalable custom models for different load and project needs, with core parameters and exclusive designs as follows:
Core Standard Specs: Speed ≤0.63 m/s, standard load 450kg (6 persons), travel height for 2-5 stories, glass-type low-speed traction, MRL/MR optional, gearless motor, integrated controller.
Scalable Custom Load Models: 630kg/800kg/1000kg/1350kg/1600kg, with matching speed options (1.02.5 m/s) and opening widths (800*2100mm1100*2100mm), headroom 4.0-4.5m, and pit depth 1.5-2.0m (scalable by load).
All models feature a modern operational panel lineup (PLB-D01~D06) with intuitive design, meeting diverse B2B project functional needs.
Model
Home Elevator
Application
Residential, Hotel, Office
Loading (Kg)
630
800
1000
1350
1600
Speed (m/s)
1.0/1.75
1.0/1.75/2.0
1.0/1.75/2.0
1.0/1.75/2.0/2.5
1.0/1.75/2.0/2.5
Motor
Gearless Motor
Control System
Integrated Controller
Door Control
VVVF
Opening Width (mm)
800*2100
800*2100
900*2100
1100*2100
1100*2100
Headroom (m)
4.0-4.5
Pit Depth (m)
1.5
1.5-1.7
1.5-1.8
1.8-2.0
1.8-2.0
Total Height (m)
<150m
Stop
<56
Brake voltage
DC110V
Power
380V,220V,50HZ/60HZ
Nationwide Service & Factory-Direct Support for Glass Home Elevator
With 18+ years of elevator manufacturing experience, a 20,000 m² state-of-the-art production facility, and a dedicated technical team of 18 professional engineers, PLANCK offers factory-direct B2B support for all glass traction elevator projects, with a registered capital exceeding USD 28 million and recognition as one of China’s Top 10 domestic elevator manufacturers. Our B2B service includes pre-project structural design consultation, custom model R&D for large-scale projects, on-site installation supervision, and long-term post-sales maintenance. We prioritize on-schedule delivery and budget compliance for every B2B partner, with a dedicated account manager for one-to-one project follow-up—ensuring a seamless experience from design to operation.
Wide Applications of Space-Saving Glass Traction Elevator
This glass-type traction elevator is a versatile B2B solution for high-end low-rise projects, with core applications including:
High-end residential areas (modern apartments, custom self-build houses);
Premium real estate developments (residential complexes, villa communities);
Commercial buildings with aesthetic design requirements (art galleries, small cultural spaces).
Its blend of luxury design and practical performance makes it a core value-adding feature for B2B clients developing high-end property projects.
Company Hall
Dispaly Hall
Production Workshop
Delivery Area
FAQ About PLANCK Glass Traction Home Elevator
Q1: What safety features does the glass elevator have for residential use?
It is equipped with an overspeed governor, interlocked safety gear, and safety laminated glass panels—all certified for residential elevator safety standards, with instant stop functionality in emergency situations.
Q2: Can the glass cabin be tinted for privacy in high-end residential projects?
Yes, we offer fully customizable glass tints (transparent/frosted/tinted) for B2B clients, balancing privacy and aesthetic design as needed.
Q3: Does PLANCK provide installation support for custom self-build house projects?
Absolutely. Our technical team offers on-site structural assessment and installation supervision for all custom projects, ensuring compliance with building codes and design requirements.
Q4: What is the lead time for mass production of B2B large-scale projects?
For standardized models, the lead time is 4-6 weeks; for fully custom models, it is 6-8 weeks—with flexible production scheduling for large-scale real estate development projects.
