Elevating the functionality of your compact residence requires careful architectural planning. Finding the ideal vertical mobility solution goes far beyond simple aesthetics. Installing a lift in a compact villa involves strict spatial, structural, and aesthetic constraints. Standard commercial elevators simply cannot meet these unique residential requirements. A successful installation must maximize interior cabin space while actively minimizing the structural footprint. You must achieve this without compromising on passenger safety, property value, or the home's original architectural integrity.
This guide provides a purely objective, engineering-first framework for evaluating modern residential mobility systems. You will discover how to accurately assess your spatial limitations and choose the most effective drive mechanism. We also detail critical structural preparation steps to help you make a secure, confident procurement decision. By understanding these technical parameters, you can seamlessly integrate a home lift into your most demanding architectural spaces.
Footprint Optimization: Success in compact villas hinges on selecting pitless or shallow-pit models with minimal headroom requirements.
Drive System Selection: The choice between traction, hydraulic, and screw-driven systems directly dictates the required shaft size, noise levels, and maintenance frequency.
Civil Work Considerations: The true cost of a home lift includes hidden structural modifications; assessing structural readiness upfront prevents budget overruns.
Compliance and Safety: Prioritize systems with battery-backed lowering systems, automated doors, and compliance with local residential building codes.
Integrating a vertical mobility solution into an existing floor plan demands rigorous spatial auditing. You must look beyond the cabin interior. Engineers focus primarily on the external hoistway dimensions and structural anchoring points.
You need to calculate available square footage meticulously. Compare your available space against the required hoistway dimensions. Modern compact systems require surprisingly little space, but they still demand structural integrity. Evaluate your load-bearing walls carefully. Check the ceiling slab thickness between floors. Safe anchoring depends heavily on these measurements. Older villas often lack sufficient structural support out of the box. You might need steel reinforcements.
Best Practice: Always request a local structural engineer to verify your floor slabs. Never assume standard timber joists can support dynamic elevator loads.
Standard commercial pits require deep concrete excavation. You rarely find this feasible in existing compact homes. Excavating basement slabs invites groundwater leaks and compromises foundations. Instead, evaluate shallow-pit solutions. Many advanced systems need only 50mm to 150mm of depth. Entirely pitless options exist too. They work perfectly for ground floors facing strict structural limitations.
Next, determine your top-floor headroom limits. Low ceilings restrict where engineers can place drive mechanisms. Standard headroom usually demands 2500mm or more. If you have low ceilings, you must specify a low-headroom model specifically designed for residential attics or sloping roofs.
Strategic placement minimizes layout disruption. You have several excellent options depending on your architecture:

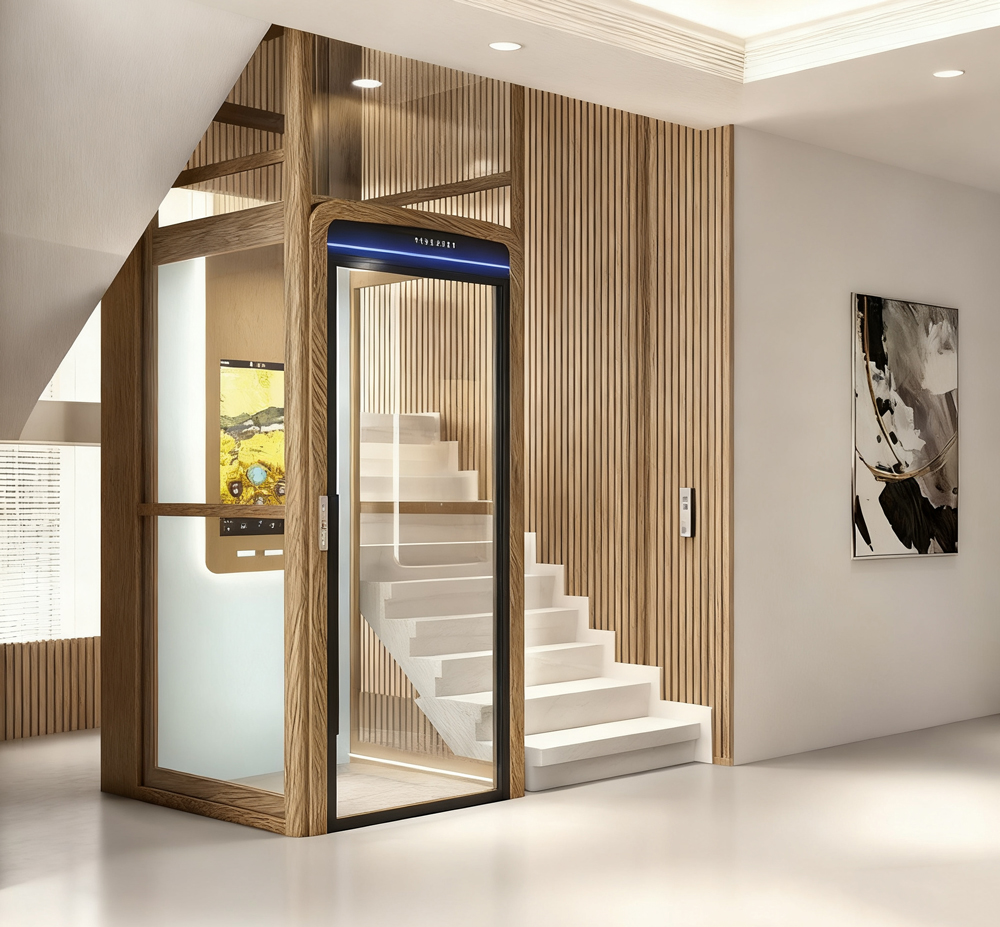

Stairwell Voids: Utilizing empty space inside winding staircases keeps the installation centrally located.
Exterior Retrofit Shafts: Attaching an external glass shaft outside the walls saves precious interior room.
Through-Floor Solutions: Cutting discreet holes directly between rooms allows for minimal footprint units.
Evaluate these placement strategies based on daily household traffic. An exterior shaft preserves interior square footage beautifully. However, it requires local zoning approval and weather-resistant structural framing.
Selecting the right mechanism defines your entire user experience. Every compact residential lift relies on one of three core technologies. Understanding their mechanical differences helps you align the hardware with your architectural realities.
A modern traction home elevator utilizes a counterweight mechanism. It relies on advanced steel belts or wire ropes. Engineers usually design these as machine-room-less (MRL) units. The motor sits directly inside the top of the hoistway.
They deliver incredibly high ride quality. You will enjoy smooth, quiet, and highly energy-efficient operation. Traction drives respond quickly to commands. However, they require precise structural alignment. They also demand a fairly rigid vertical footprint. You must ensure your top floor has adequate headroom to house the MRL motor safely.
Here, a powerful electric motor turns a large nut along a vertical steel screw. This mechanism pushes the platform up and down. Space utilization is exceptional. You can often achieve up to a 70% internal cabin space to shaft ratio.
They require zero pit excavation, resting directly on finished floors. This makes them ideal for retrofit projects. Historically, they move slightly slower than traction units. They can also produce more mechanical noise. However, recent acoustic insulation advancements have significantly reduced their decibel output.
These units utilize a fluid-driven piston to raise the cabin. They offer immense weight capacities. They suit heavy wheelchair accessibility needs perfectly.
Unfortunately, they carry specific drawbacks for compact homes. They need dedicated external space for a pump box and hydraulic reservoir. They carry slight risks of fluid leaks over time. Furthermore, they demand more robust, frequent maintenance to ensure valve seals remain intact. Temperature fluctuations can also affect hydraulic fluid viscosity, slightly altering ride smoothness.
Feature | Traction Drive | Screw & Nut Drive | Hydraulic Drive |
|---|---|---|---|
Space Efficiency | Moderate (needs counterweight space) | Very High (up to 70% cabin/shaft ratio) | Low (requires external pump room) |
Pit Requirement | Shallow pit (150mm - 300mm) | Pitless or minimal (50mm) | Standard pit usually required |
Ride Quality | Extremely smooth and fast | Steady but generally slower | Smooth, but sensitive to temperature |
Maintenance Frequency | Low to Moderate | Low (self-lubricating options exist) | High (fluid checks and valve testing) |
Designing a custom home lift requires thoughtful compromise. You must balance everyday utility against the physical limitations of your property. Customization impacts everything from mechanical wear to spatial flow.
You must carefully frame the trade-off between passenger capacity and architectural voids. Accommodating a standard wheelchair requires specific minimum cabin widths. You typically need at least 900mm of clear opening and a 1200mm cabin depth. Fitting these dimensions inside a compact void is challenging. If you only need multi-passenger standing room, you can utilize much tighter, customized geometric shapes. Prioritize your primary use case before locking in the cabin size.
Your floor plan variations dictate your ideal door choices. Engineers can configure access points in several ways:
Single-entry: You enter and exit through the same door. Ideal for standard, stacked floor layouts.
Opposite-entry (Through-car): You enter on one side and exit directly straight ahead. Perfect for passing through different building wings or split-level homes.
Adjacent-entry: Doors sit at a 90-degree angle. This configuration solves tricky corner installations flawlessly.
You must also evaluate automatic sliding doors versus manual swing doors. Swing doors save valuable interior shaft space. They allow the cabin to occupy nearly the entire hoistway. However, they require significant external clearance on your landing areas. Automatic sliding doors eliminate exterior clearance issues but consume internal cabin depth to house the sliding mechanisms.
Luxury finishes add massive aesthetic appeal. They also add immense physical weight. Glass cabins, heavy stone flooring, and solid wood paneling look beautiful. Yet, they impact the required drive capacity directly.
Heavier materials accelerate overall system wear. Engineers must calculate these dynamic loads early in the design phase. A heavier cabin might force you to upgrade from a standard motor to a heavy-duty traction system. Common Mistake: Homeowners often finalize interior design finishes before consulting the elevator engineer. This sequence frequently causes late-stage mechanical redesigns. We highly recommend specifying your material weights before finalizing the drive system.
Finding a reliable villa elevator vendor remains crucial. The manufacturing quality dictates your long-term safety. The installation process dictates your immediate peace of mind.
You must audit vendor safety certifications rigorously. Do not trust marketing brochures blindly. Look for clear CE marking for European standards. Seek ASME A17.1 compliance for North American installations. These certifications guarantee the unit passed stringent mechanical stress tests.
Additionally, you should independently verify decibel ratings. Ask the vendor for case studies or live demonstrations. Test the noise levels from outside the shaft, not just inside the cabin. Look for standard safety features like battery-backed lowering systems. If a power outage occurs, the system must automatically descend to the nearest floor and open the doors.
Understand the timeline differences in manufacturing. Custom manufacturing has long lead times. Expect several months for bespoke units featuring rare materials or non-standard dimensions. Conversely, standardized modular units arrive much faster.
Discuss property damage mitigation extensively before starting work. Installers must protect your existing floors, walls, and HVAC systems. Dust containment is vital during floor slab cutting. Ensure the vendor provides a clear, written protocol for site cleanliness and debris removal.
Prioritize vendors offering comprehensive, on-site structural surveys. They must define the exact boundaries of civil works transparently. You need to know exactly where their responsibility ends and your general contractor's begins.
Ensure they have verifiable local post-sales support infrastructure. Elevator maintenance requires specialized technicians. You do not want to wait weeks for a technician to fly in from another region.
Next Step: Commission a localized structural audit immediately. Complete this technical review before paying any hardware deposits. This proactive step protects your property fully.
Selecting a vertical mobility solution for a compact space demands careful technical planning. It remains an exercise in structural compromise and precise drive-system matching. It goes far beyond mere aesthetic selection. You must balance mechanical limitations against your daily accessibility needs.
Always prioritize pitless or shallow-pit models to preserve your foundation.
Match your drive system strictly to your available headroom and noise tolerance.
Calculate the weight of custom finishes before finalizing your mechanical specifications.
Commission a professional site survey first to lock in true installation parameters.
By applying this engineering-first framework, you ensure a safe, unobtrusive, and highly functional addition to your home. Take action today by scheduling a structural audit with a certified local engineer.
A: Standard models often function as basic mobility aids. They have lower payload capacities, basic finishes, and minimal architectural integration. A villa elevator integrates deeply into the home's bespoke design. It scales up in luxury materials, offers higher weight capacities, and handles heavier daily usage seamlessly without looking like medical equipment.
A: Yes. You have multiple excellent options today. Screw-driven systems sit directly on your existing finished floors. Shallow-pit traction models require merely 50mm to 150mm of depth. Both technologies effectively prevent major concrete excavation, making them perfect for existing residences.
A: Absolutely. Most municipalities mandate strict zoning permits and safety inspections. You must ensure full local code compliance. A structural engineer assesses your load-bearing walls and floor slabs safely. Skipping this critical step risks severe property damage and heavy legal penalties.
A: Manufacturing lead times vary significantly based on customization. Bespoke units typically take 12 to 16 weeks to build. However, the physical site installation is surprisingly fast. Experienced installation crews usually finish the onsite assembly and safety testing in just five to seven days.
